Sizes available

ORBITOOL comes in two configurations: one-hemisphere and two-hemisphere.

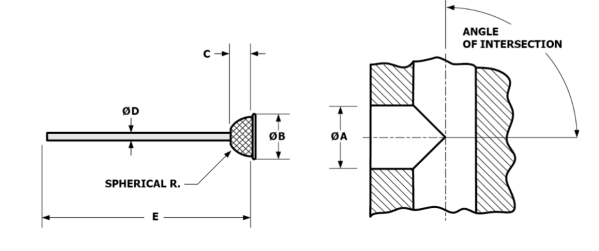

One-Hemisphere Configuration Available Sizes

size1mm2

Special shaft lengths available. Please contact us for specific application assistance.

Size, Nominal Complete Tool P/N Flexible Holder P/N Cutter P/N Series Ø A min (approx)
varies with angle
of intersection,
mm
Ø B
disk,
mm
C
head height,
mm
Ø D
shaft,
mm
E
AS supplied,
mm
F
insertion,
mm
G,
mm
Ø H,
mm
90° 60° 45° min max
0.074 10004-074 14001-030 14000-074 2.00 *please contact for specific
application assistance
1.88 0.99 0.76 63.5 3.81 9.14 20.57 14.22
3/32 10004 14001-030 14000 3.18 4.52 6.15 2.69 1.78 0.76 63.5 3.81 9.14 20.57 14.22
1/8 10001 14001-045 11000 4.37 6.02 8.18 3.58 2.39 1.14 101.6 3.81 9.14 20.57 14.22
5/32 10005 14002-061 15000 5.46 7.52 10.24 4.42 2.74 1.55 101.6 3.81 14.22 35.05 20.57
3/16 10006 14002-061 16000 6.55 9.04 12.27 5.18 3.15 1.55 101.6 3.81 14.22 35.05 20.57
1/4 10002 14002-093 12000 8.74 12.01 16.36 6.88 3.84 2.39 152.4 3.81 14.22 35.05 20.57
3/8 10003 14003-093 13000 13.13 18.03 24.54 10.31 5.51 2.39 152.4 3.81 18.29 44.45 25.40

All dimensions are in mm.

ORBITOOL parts come in 6 standard sizes and can be ordered accordingly.

size2 1

Size Part Number
3/32 10004
1/8 10001
5/32 10005
3/16 10006
1/4 10002
3/8 10003

size2 2

Size Part Number
3/32 14000
1/8 11000
5/32 15000
3/16 16000
1/4 12000
3/8 13000

size2 3

Size Part Number
3/32 14001-030
1/8 14001-045
5/32 14002-061
3/16 14002-061
1/4 14002-093
3/8 14003-093

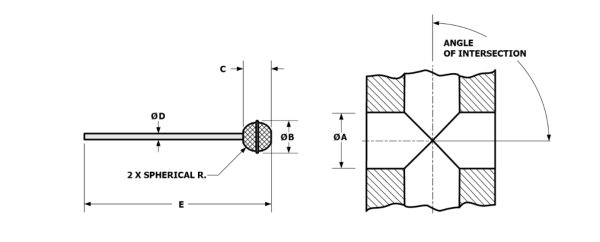

Two-Hemisphere Configuration Available Sizes

size3mm

Special shaft lengths available. Please contact us for specific application assistance.

Size, Nominal Complete Tool P/N Flexible Holder P/N Cutter P/N Series Ø A min (approx)
varies with angle
of intersection,
mm
Ø B
disk,
mm
C
head height,
mm
Ø D
shaft,
mm
E
AS supplied,
mm
F
insertion,
mm
G,
mm
Ø H,
mm
90° 60° 45° min max
0.074 10004D-074 14001-030 14000D-074 2.00 *please contact for specific
application assistance
1.88 1.98 0.76 63.5 3.81 9.14 20.57 14.22
3/32 10004D 14001-030 14000D 3.18 4.52 6.15 2.69 2.90 0.76 63.5 3.81 9.14 20.57 14.22
1/8 10001D 14001-045 11000D 4.37 6.02 8.18 3.58 3.86 1.14 101.6 3.81 9.14 20.57 14.22
5/32 10005D 14002-061 15000D 5.46 7.52 10.24 4.42 4.55 1.55 101.6 3.81 14.22 35.05 20.57
3/16 10006D 14002-061 16000D 6.55 9.04 12.27 5.18 5.41 1.55 101.6 3.81 14.22 35.05 20.57
1/4 10002D 14002-093 12000D 8.74 12.01 16.36 6.88 6.78 2.39 152.4 3.81 14.22 35.05 20.57
3/8 10003D 14003-093 13000D 13.13 18.03 24.54 10.31 10.11 2.39 152.4 3.81 18.29 44.45 25.40

All dimensions are in mm.

size4

Size Part Number
3/32 14000D
1/8 11000D
5/32 15000D
3/16 16000D
1/4 12000D
3/8 13000D

size4 1

Size Part Number
3/32 10004D
1/8 10001D
5/32 10005D
3/16 10006D
1/4 10002D
3/8 10003D
